5.8G Video Transmission Module (VTX)for Fisherman FD1 and Splashdrone 3/3+

5.8G Video Transmission Module (VTX)for Fisherman FD1 and Splashdrone 3/3+

This is a 5.8 Ghz Video Transmitter for use with the Fisherman FD1, Splashdroe 3/3+.  Often used for customers wanting to upgrade from the FD1 Standard Model to the FD1 Profish.  Needs to be used in conjunction with the Googles, and also the PL2-F Camera and Release

$149.00 incl GST

In stock

  • Quality product
  • 1 year warranty
  • Walk-in, After-sale service centre
  • FREE delivery on orders over $500
  • Gem-By-Latitude_Logo_Blue_RGB
SKU FD1-58-VTX Category

Overview: The video link is already built-in in the drone to transmit videos from the drone to the remote controller. Customers only need it only when repairing.

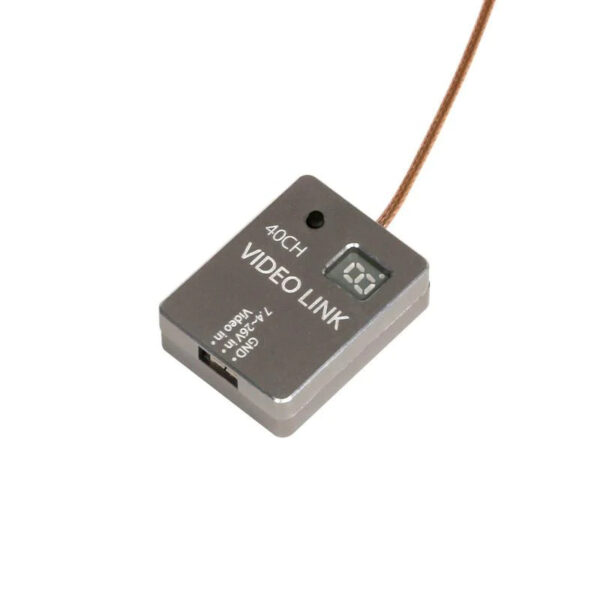

Mi600C 5.8G FPV video transmitter is sealed in an aluminum body; and is compatible with all analog receivers on the market. The Mi600C uses a 5-pin socket and flat data cable, which makes it more convenient to use.

Specifications:

Transmit power: 600mw
Frequency: 5.8G
Channel: 40CH
Input voltage: 7.4V-28V
Antenna gain: 2db~3db
Working Current:  220mA @12V
Operation Temperature: -20-60 ℃
Video format: NTSC/PAL Auto
Video Band-width: 8M
Net weight: 20g
Physical size: 31*23*9mm
Signal Range: Up to 2-3KM

In the Box: VIDEO LINK× 1pcs

Compatibility: Fisherman FD1, SplashDrone 3+, SplashDrone 3

BrandSwellPro
